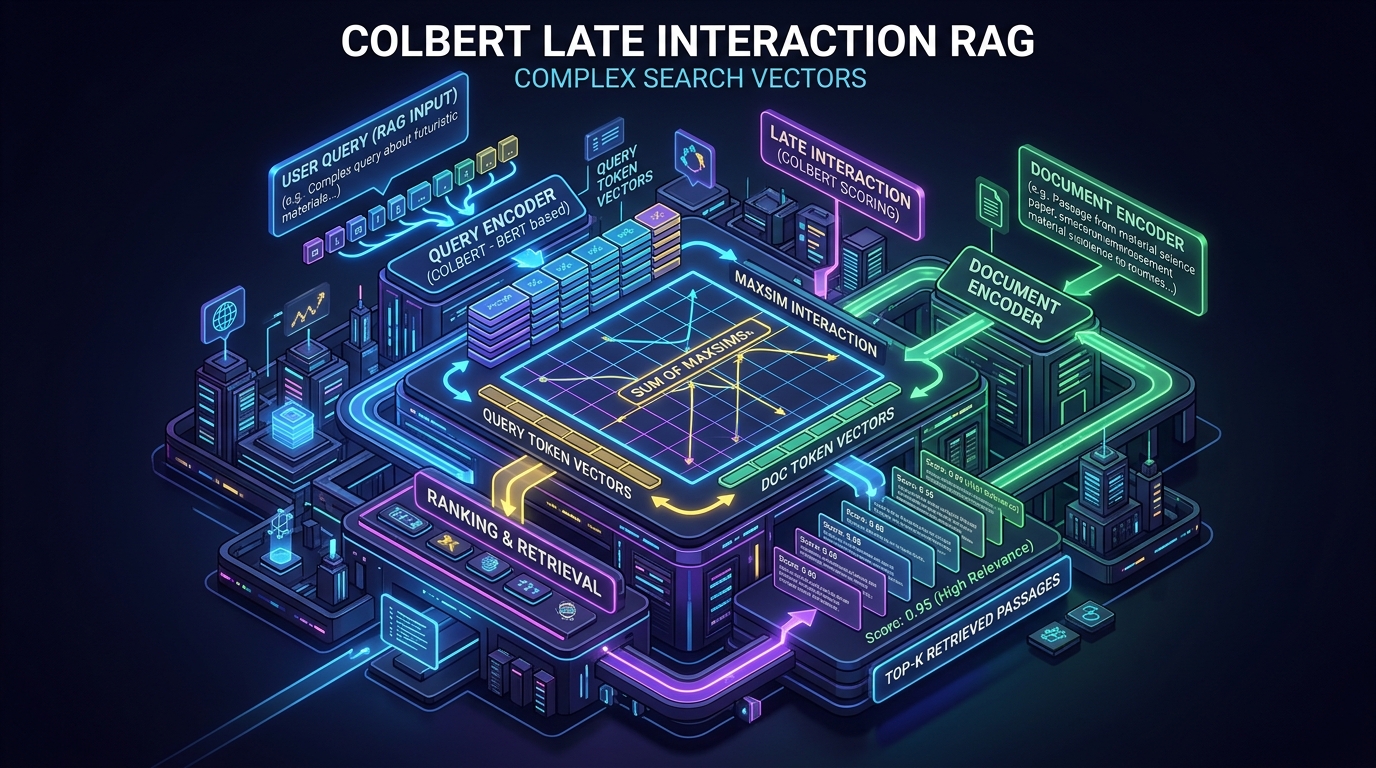

ColBERT Late Interaction: Advancing RAG Beyond Dense Embeddings

1. The Single-Vector Dense Embedding Bottleneck

Traditional Retrieval-Augmented Generation (RAG) pipelines rely on dense single-vector embedding models (such as OpenAI text-embedding-3 or BGE-Large). In this architecture, an entire passage consisting of hundreds of words is compressed into a single floating-point vector of fixed dimension (e.g., 1536 dimensions).

This lossy compression introduces a severe semantic bottleneck. When a document contains multiple distinct facts or intricate technical specifications, compressing the entire context into one vector dilutes specific token relationships. As a result, dense vector search frequently fails on fine-grained keyword queries, exact part-number lookups, and complex multi-hop queries.

Furthermore, standard dense retrieval suffers from the well-documented 'lost in the middle' phenomenon, where relevant details positioned deep inside long passages fail to achieve high cosine similarity scores against concise user queries.

Solving this structural limitation requires an architectural shift from early interaction (expensive cross-encoders) and single-vector compression to token-level late interaction.

2. Late Interaction Architecture & MaxSim Operator

ColBERT (Contextualized Late Interaction over BERT) introduces a hybrid retrieval model that combines the high retrieval quality of heavy cross-encoders with the execution speed of dual-encoder vector search.

Instead of compressing a document into a single vector, ColBERT processes the query and document independently through BERT, generating a sequence of contextualized token embeddings for every single token in the query (Q) and document (D).

The similarity score between query Q and document D is computed using the MaxSim operator. For each token vector in the query, ColBERT computes the maximum dot-product similarity across all token vectors in the document. The final relevance score is the sum of these maximum similarity scores.

Because query-document token interactions are deferred until the final scoring phase (hence 'late interaction'), query embeddings and document embeddings can be pre-computed and indexed offline.

# PyTorch Implementation of ColBERT MaxSim Operator
import torch
import torch.nn.functional as F

def colbert_maxsim(query_embeddings: torch.Tensor, doc_embeddings: torch.Tensor) -> torch.Tensor:
    # query_embeddings: [batch_size, q_len, dim]
    # doc_embeddings:   [batch_size, d_len, dim]
    # Compute cosine similarity matrix between all query and document tokens
    sim_matrix = torch.bmm(query_embeddings, doc_embeddings.transpose(1, 2))
    # MaxSim: find maximum similarity per query token across all document tokens
    max_sim_per_qtoken, _ = torch.max(sim_matrix, dim=2)
    # Sum maximum similarities across query sequence
    score = torch.sum(max_sim_per_qtoken, dim=1)
    return score

3. PLAID: Performance-Optimized Token Indexing

Storing multiple 128-dimensional token vectors for every document in a large corpus creates immense memory overhead. Storing token embeddings for 10 million passages in uncompressed FP32 format would require terabytes of RAM.

ColBERTv2 resolves this footprint challenge through PLAID (Performance-optimized Late Interaction for Asymmetric Search). PLAID utilizes residual quantization and k-means centroid clustering to compress token vectors down to 16-32 bytes per token.

During retrieval, PLAID executes a pruned 3-stage search pipeline: first filtering candidate documents using centroid-level IVF indexes, then pruning unpromising documents using quantized vector representations, and finally computing exact MaxSim scores on top candidates.

This quantization pipeline enables sub-10 millisecond retrieval latencies over millions of passages while consuming 90% less VRAM than uncompressed multi-vector stores.

4. Enterprise RAG Pipeline Integration Blueprint

Integrating ColBERT into an enterprise RAG stack eliminates the need for complex, fragile hybrid search pipelines that attempt to merge BM25 keyword scores with dense vector cosine similarities via reciprocal rank fusion (RRF).

ColBERT natively captures both fine-grained token matches and high-level semantic intent in a single unified scoring pass. Frameworks such as RAGatouille and PyLate allow developers to replace standard vector store retrievers with ColBERTv2 in fewer than ten lines of Python code.

When combined with large context frontier models, ColBERT ensures that the context window receives high-density, highly relevant passages, directly reducing model hallucinations and improving answer accuracy in production environments.

# Enterprise RAG Indexing and Search with RAGatouille / ColBERT
from ragatouille import RAGPreTrainedModel

# Load pre-trained ColBERTv2 checkpoint
RAG = RAGPreTrainedModel.from_pretrained("colbert-ir/colbertv2.0")

# Index technical documentation passages
RAG.index(
    collection=documents_list,
    index_name="dfir_security_docs",
    max_document_length=256,
    split_documents=True
)

# Execute Late Interaction search query
results = RAG.search(query="How to configure eBPF XDP DDoS rate limits?", k=5)
